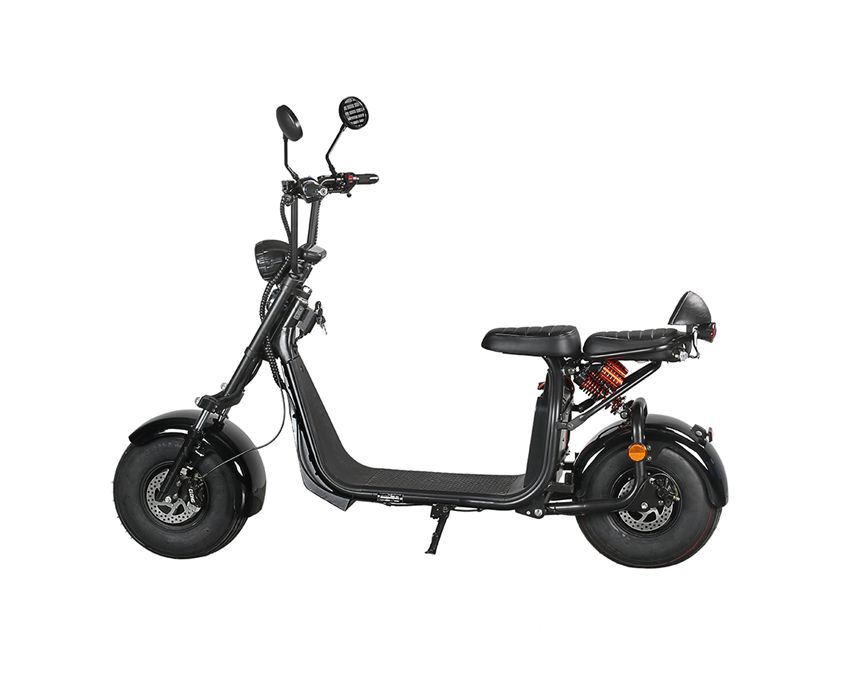

EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
  • EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
  • EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
  • EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
  • EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
  • EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
  • EcoRider ES057 EEC Harley Electric Scooter with Removable Battery
EcoRider ES057 EEC Harley Electric Scooter with Removable BatteryEcoRider ES057 EEC Harley Electric Scooter with Removable BatteryEcoRider ES057 EEC Harley Electric Scooter with Removable BatteryEcoRider ES057 EEC Harley Electric Scooter with Removable BatteryEcoRider ES057 EEC Harley Electric Scooter with Removable BatteryEcoRider ES057 EEC Harley Electric Scooter with Removable Battery

EcoRider ES057 EEC Harley Electric Scooter with Removable Battery

      EcoRider ES057 EEC Harley Electric Scooter with Removable Battery

      Model: ES057(double seat)/ES057S(Single Seat)

      Maximum speed: 25km/h-45km/h

      Maximum distance range: 40-70KM

      Maximum Load: 200 KG

      Motor: 60V 1500W brushless motor

      Battery: 60V 12AH or 20Ah LG lithium removable battery

      Charging time: 4-5 hours

      Tire size: 18" tire

      Lighting system: front and rear LED light

      Brake system: front and rear disc brake

      Total Weight: 64 KG

      Accessories: Power adapter

      Carton Size: 178*41*83CM

      Gross Weight: 78 KG

EcoRider ES057 EEC Harley Electric Scooter with Removable Battery


EcoRider Electric Scooter Model ES057/ES057S,also know as cityoco or Harley style scooter,it is new generation developed in 2018 with self developed higher quality body frame,more strength and better look appearance.


I. Advantage of Ecorider:

EEC certificate,with speedmeter and Emarked mirror and light,reflector, VIN number to register license for road legal use.

Frame material: we are using seamless steel tube frame, it's much strengther than other supplier's.

Spare parts are available. Color optional,body frame colors,black,white,grey,red,pink,etc.

Other Features:

1, Motor power: 1500W

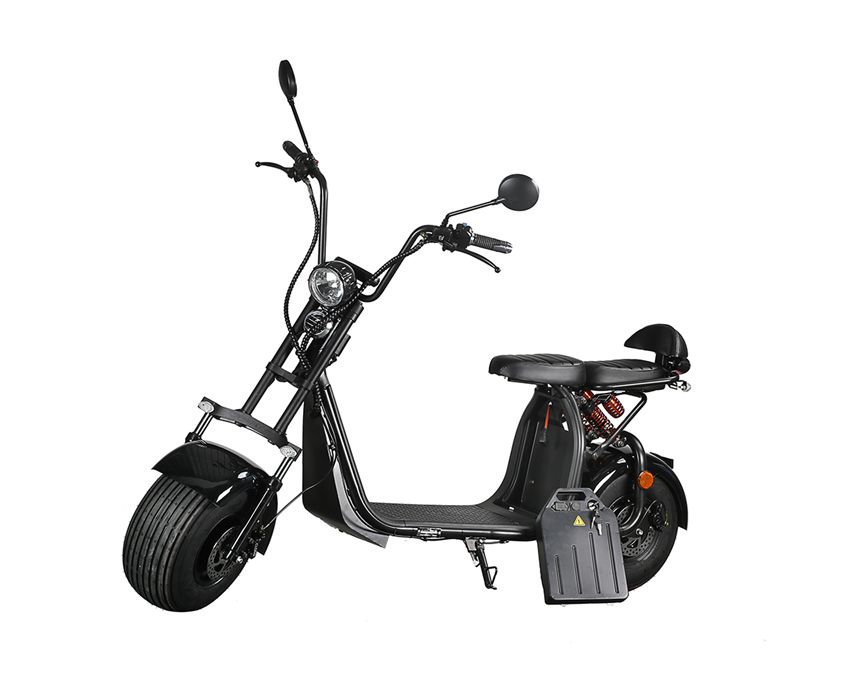

2, Battery:  A: 60V, 20AH Chinese Cell/LG Cell optioanal. B: Battery lasting with 70Kg person on board: real 60-70Km  C: Can be removable. Easily for end-user to keep one more battery to extend the distance

3, Charger: Standard EEC charger 2AH, Charing time: 8HRS, chargers can be changed to 5AH(CE certificate), charging time: 5HRS

4, Speed: EEC Standard safety requirement 25KM/H. Maximum speed can be up to 40-45KM/H( cable in the controller controlled)

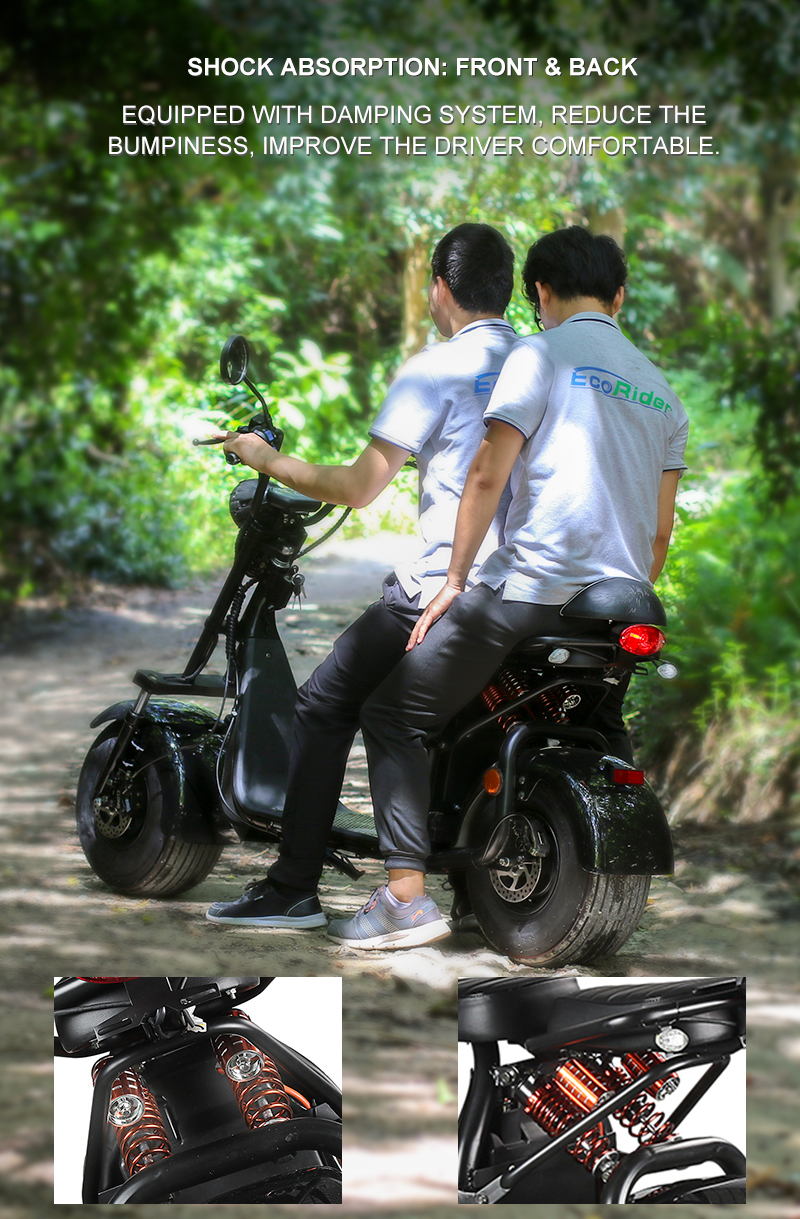

5, Shock absorption: Front & Back

6, Disk Brake: Front & Back

7, Horn, Back Red Light for Brake

8, Tyre: Tubeless Tyre, with 18 x 9.5 inch

9, Brake: the brake is front/rear hydraulic disc brake, much safer than other mechanical brake.The thickness of the discs is 3mm.

10, light:EEC standard front and rear light/Turning light: EEC standard has no requirement on the Turning light,but we add all for our ES056/ES057.

11, Mirror: EEC standard Left & Right Mirror

12, Seat: One stable seat and second one optional for second person so the supported weight can be 200Kg

13, Speedmeter: Battery Status/Speed/Last Ride Distance/Total distance from the beginning. not erasable by the user.

14,VIN number for registration in Europe as EEC certificate requirement.

15, Other information: Waterproof. If not using of scooter, better to take out the battery.

Frame,seamless steel pipe

strong torque motor with ability of wonderful climbing and splash proof,can riding within 5cm depth water

Tyre,puncturing,durability more than 2 years.

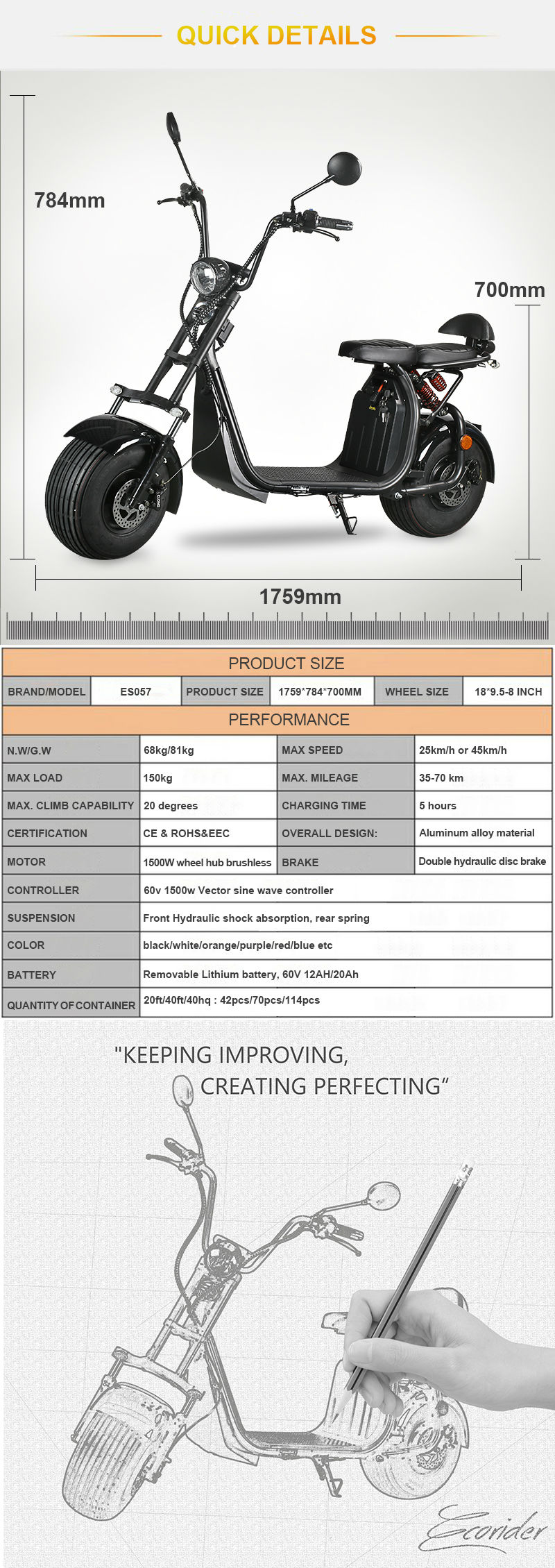

II. Specification of electric scooter


Brand/ModelEcoRider ES057 or ES057S
Max speed25-40km/h
Motormini high speed brushless motor 1500w
Max Loading200KG
Battery60V12ah or 20Ah Lithium Battery,Removable
Range40-60KM or 35-40 Miles
Charging time4-5 hours
Tire/Wheel size18 *9.5 " tire; 12" wheel
Gross Weight58KGS
Product size1759*784*700mm
CTN Size178*41*83CM
Cubic Weight for shipping120 KG
CertificationCE,FCC,ROHS

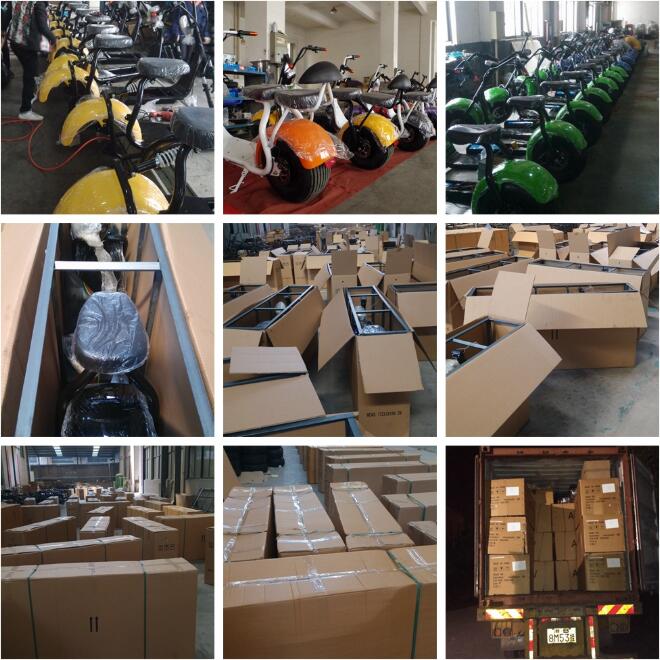

III. Packaging & Shippping


Package Dimension: 178cm*41cm*83cm;

Packing Way: 1PC/CTN;Neutral carbon box with foamed plastic and iron shelf.

Inner Bracket+Outer Carton.

Freight Available:Shipping,Air transportation, Express Delivery.

Shipping cost,Different countries with different shipping cost,exact shipping cost or if you have any question please contact with salesman.

1*20: 40PCS; 1*40’: 90PCS; 1*40HQ: 100PCS
